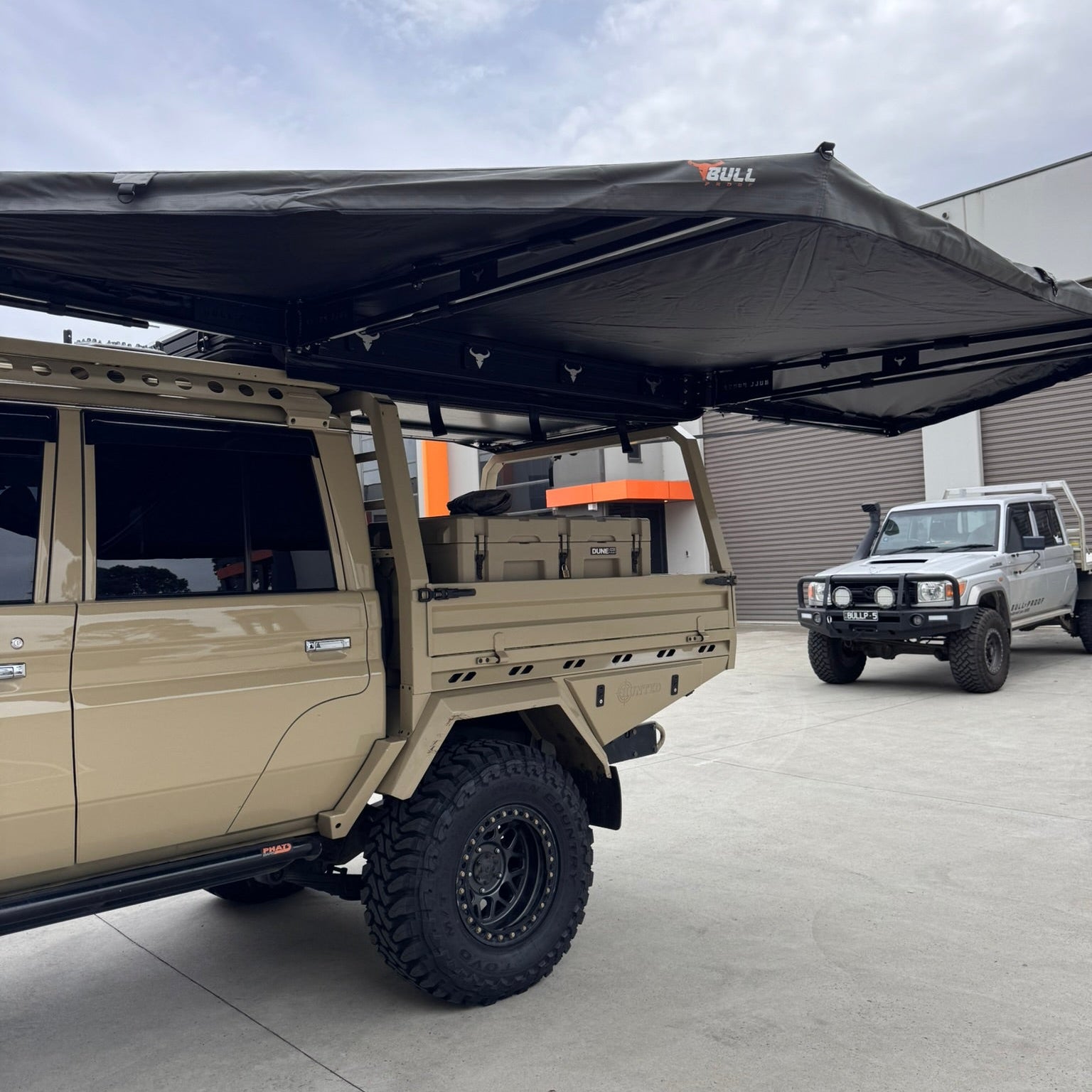

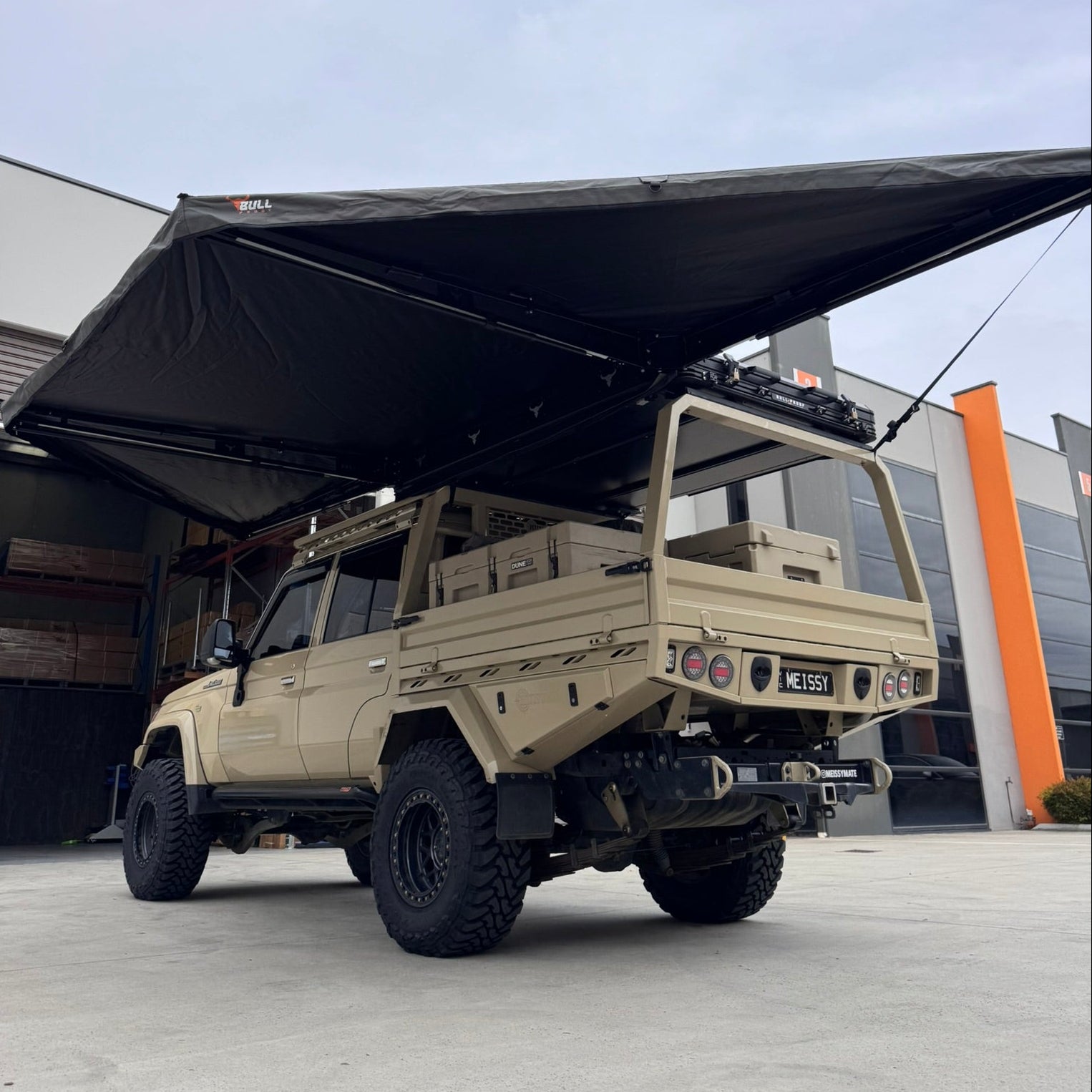

Free Standing 180 Awning with Built-In LED Lighting

Instant, reliable shade for your 4x4 or rooftop tent. The Bull Proof Free Standing 180 Awning has a welded A-frame, a reinforced backing plate and telescopic support poles built into each arm, so it holds up when the weather turns. The lights run the full length of the awning.

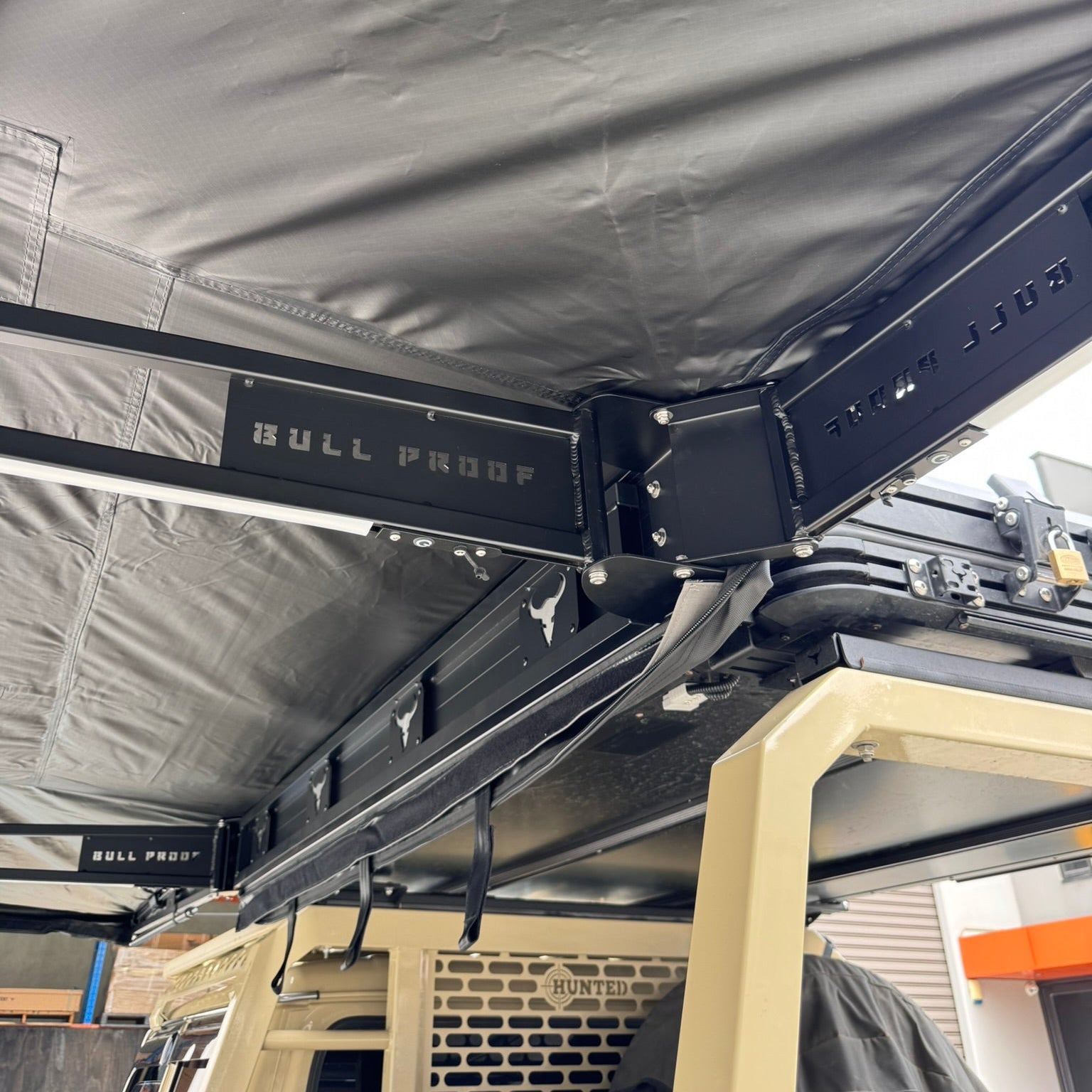

• Welded A-frame: stronger handling in poor weather.
• Reinforced backing plate: a welded support frame reduces flex.
• Built-in LED lighting: touch-button lights on each arm with 3 colour settings and dimming.
• Built-in support poles: telescopic poles in each frame, with spike ends for securing into the ground.
• Quick, simple set up: tension it out and secure it with the quick release straps included.
• Passenger or driver side: mount it on whichever side suits your camp.
• Rain run off poles: fold them up to help water drain off the canvas.
• Tough materials: 320GSM canvas with a 1680D transit cover for better scratch resistance.
• Stitched-in tie-down points: at the end of each arm and at the mid points.
• Slide-through rail: attach hanging storage pockets.
• Easy height adjustment: 4 mounting channels.
• Wall-ready: fitted velcro for the optional wall set. Wall kits and individual walls are available.

Specifications

What's Included

• 2 x flat pack brackets, with assembly and mounting hardware, including specialised T-bolts for the awning channels
• 2 x quick release rope ratchets
• 6 x pegs and 6 x tie-downs
• 2 x USB connection cables for the lighting
• 1 x small slide-through storage pocket

Add Walls

Complete your camp with an awning wall kit or individual walls. The awning has fitted velcro ready for them.

Mounting to a Rooftop Tent

Our AUSMADE Large Awning Brackets suit mounting this awning to a rooftop tent. Send us an enquiry if you need help choosing the right brackets.

Fitment

The flat pack brackets suit roof rack channels (square bolts) or clamping to bars (metal plates and long bolts). Not sure it will suit your rack? Send us an enquiry and we'll confirm before you order.

Installation

Prefer to have it fitted for you? We can install it at our Pakenham workshop. Send us an enquiry to book it in.

1. Assemble each bracket to your desired height with 6 x 20mm M8 bolts and 6 x nylock nuts.
2. Fix each bracket to your roof rack or bars with at least 2 fixing points.
3. Slide at least 4 T-bolts through the awning channels on each bracket (2 top, 2 bottom). Match them to the bracket slots at your chosen height and secure with the washers and nylock nuts.

Care and Maintenance

• Unzip the awning all the way to the end before pulling it out so the zips don't snag.
• Tension it evenly at both tensioning points.
• Fold the rain run off poles down and check the canvas isn't caught on the hinge before packing away.
• Clean with warm water and a sponge or soft brush. Use standard car wash solution on the transit bag. Avoid harsh chemicals.
• Air it out after use in damp conditions, and check brackets, hinges and bolts for tightness.
