🔍 Surface & Component Inspection

Every riflescope undergoes detailed visual inspection of:

•
  Surface colour consistency

•
  Scratches and finish quality

•
  Engraving clarity and precision

•
  Reticle plate glass

•
  Zoom condenser lens

•
  Rear lens chamber glass

•
  Dust and contamination


All inspections are conducted under controlled lighting and fixed distance conditions to ensure consistency across every batch.

⚙️ Mechanical & Control Testing

We thoroughly test all moving and adjustable components including:

•

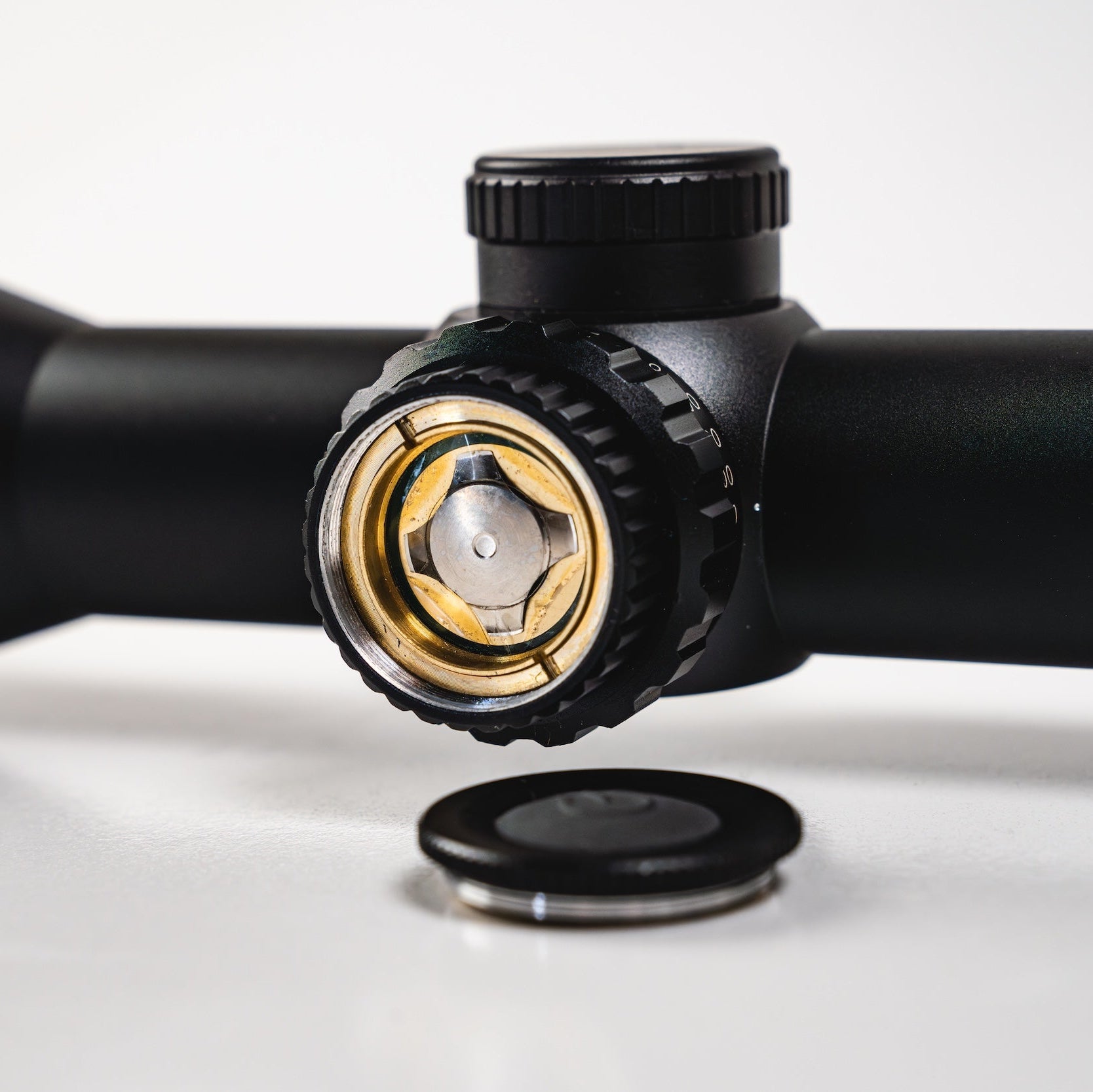

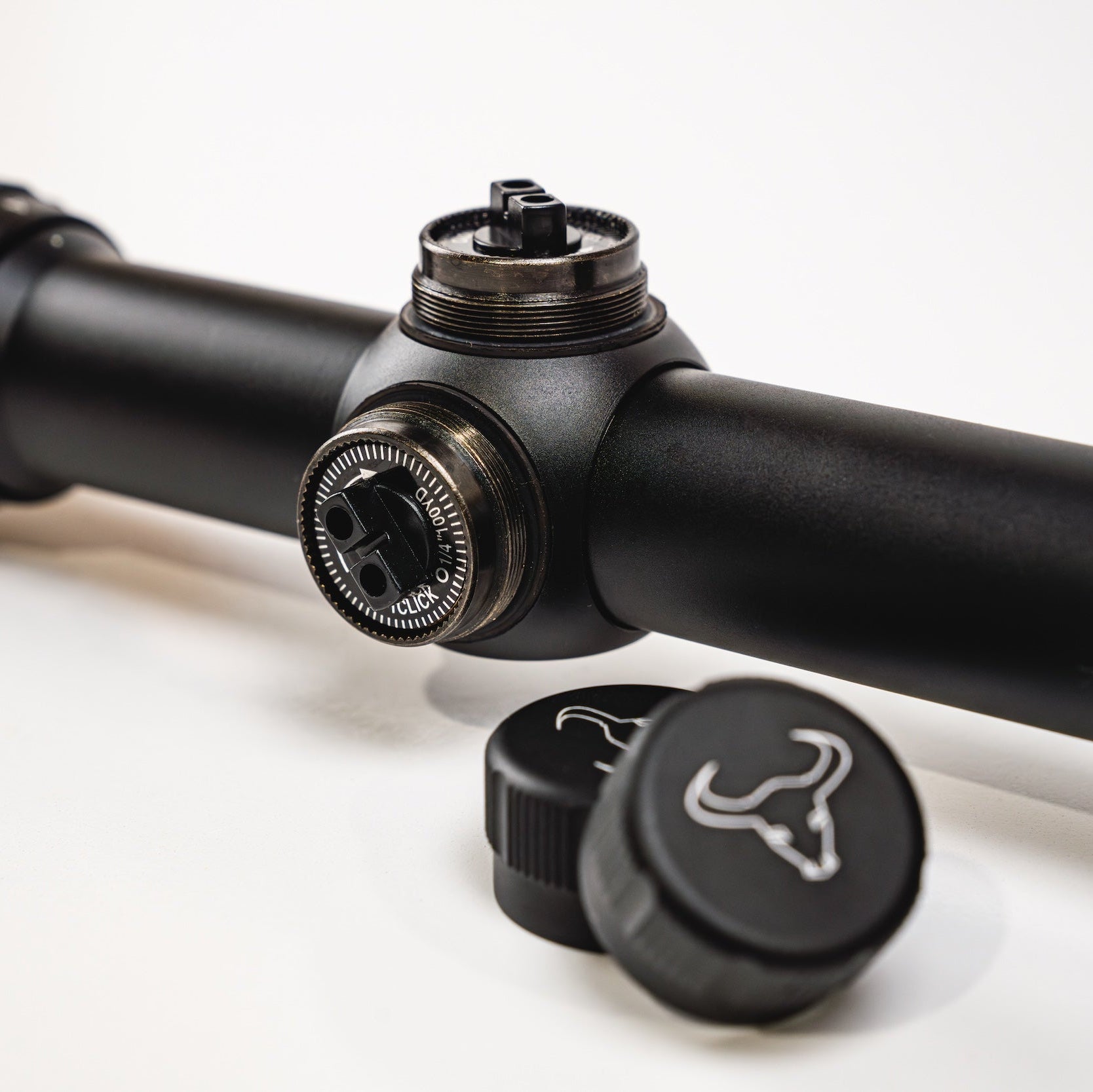

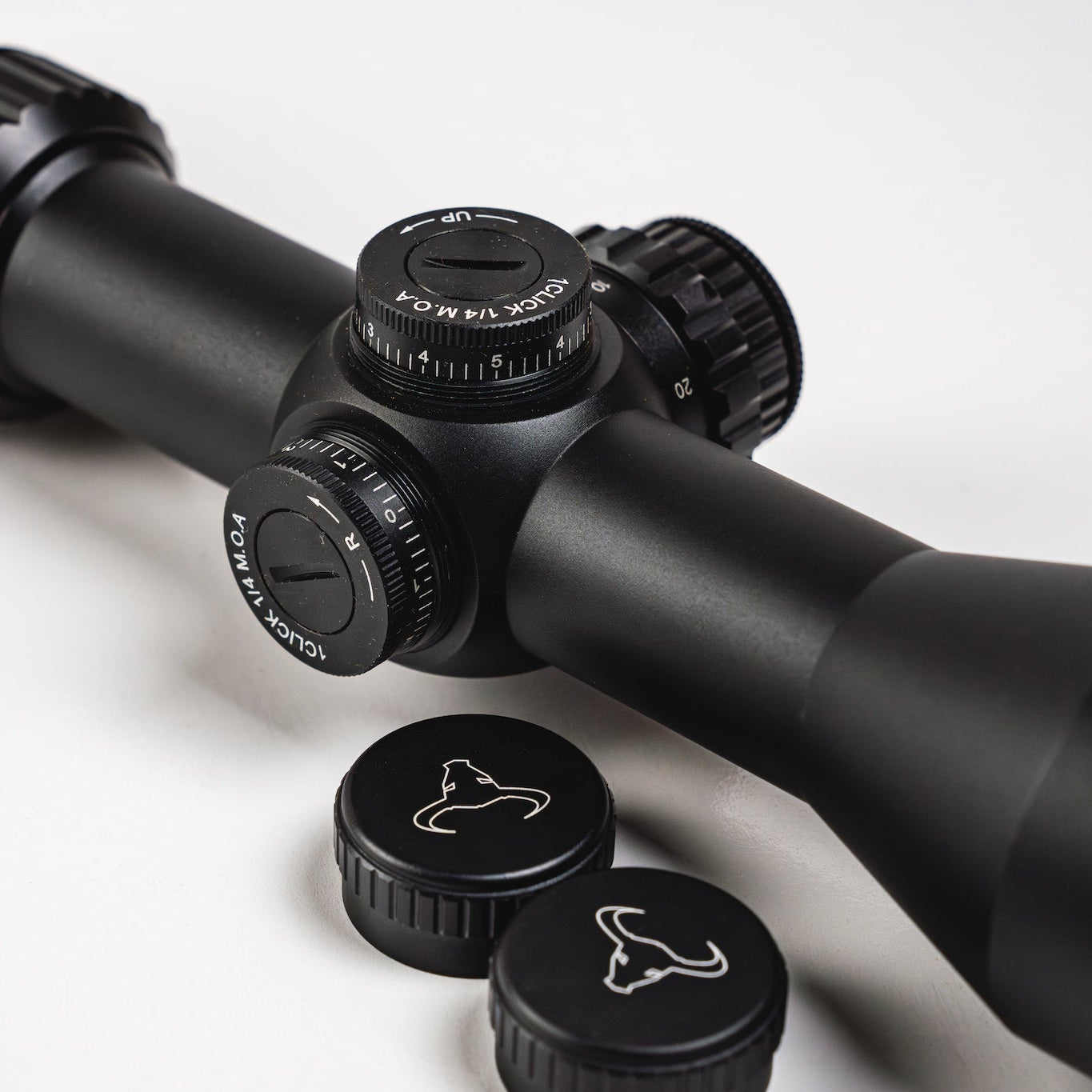

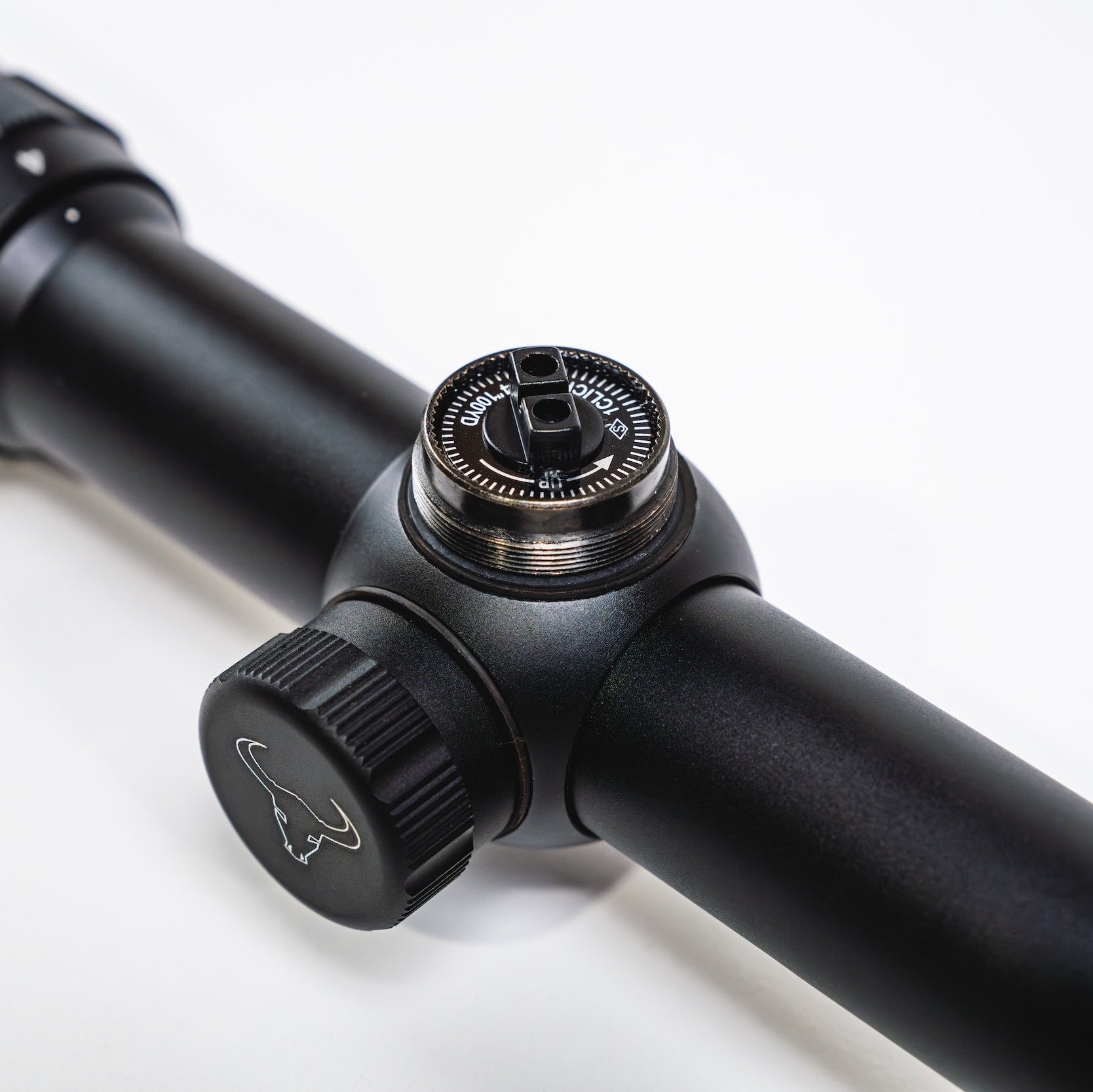

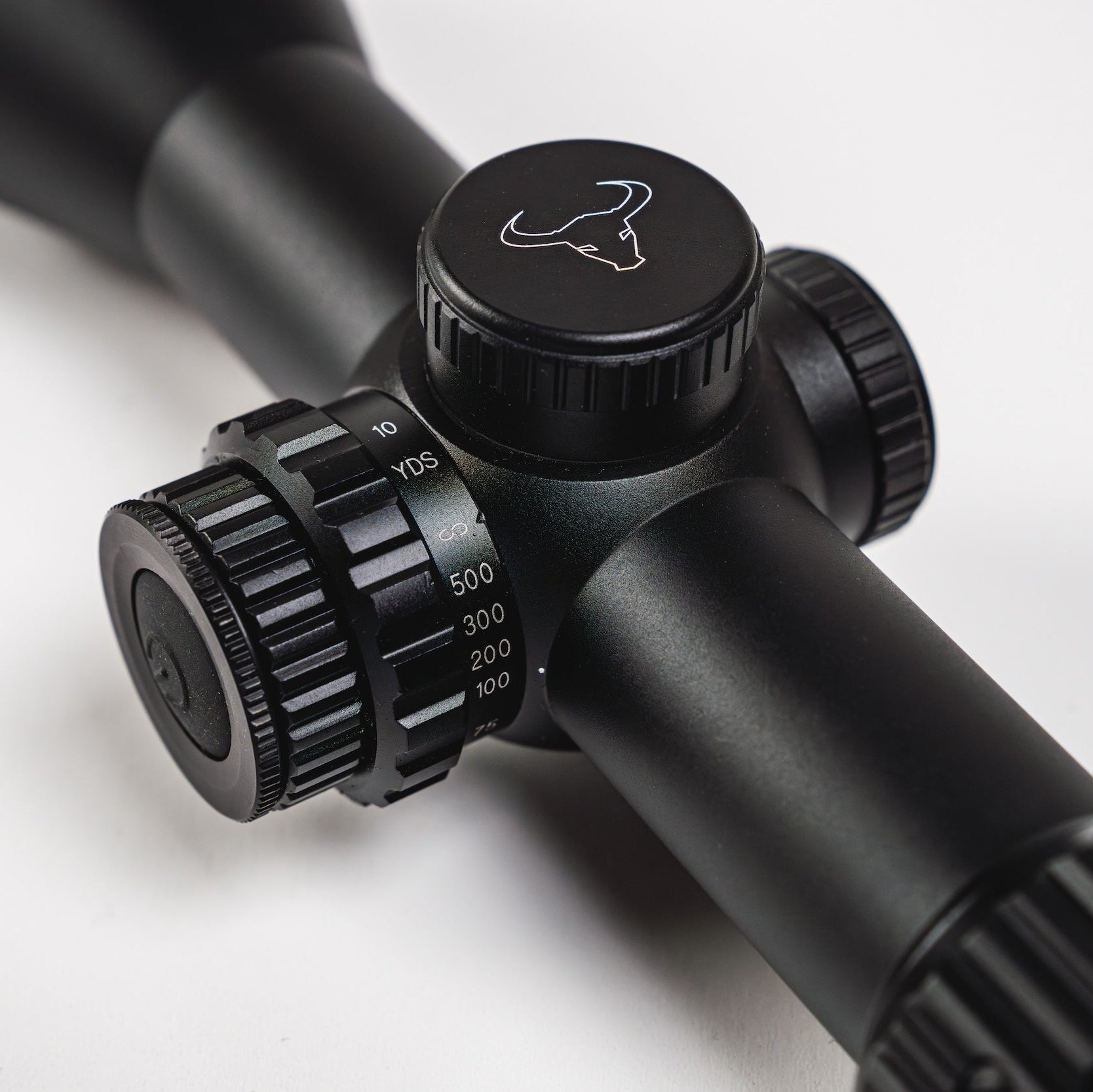

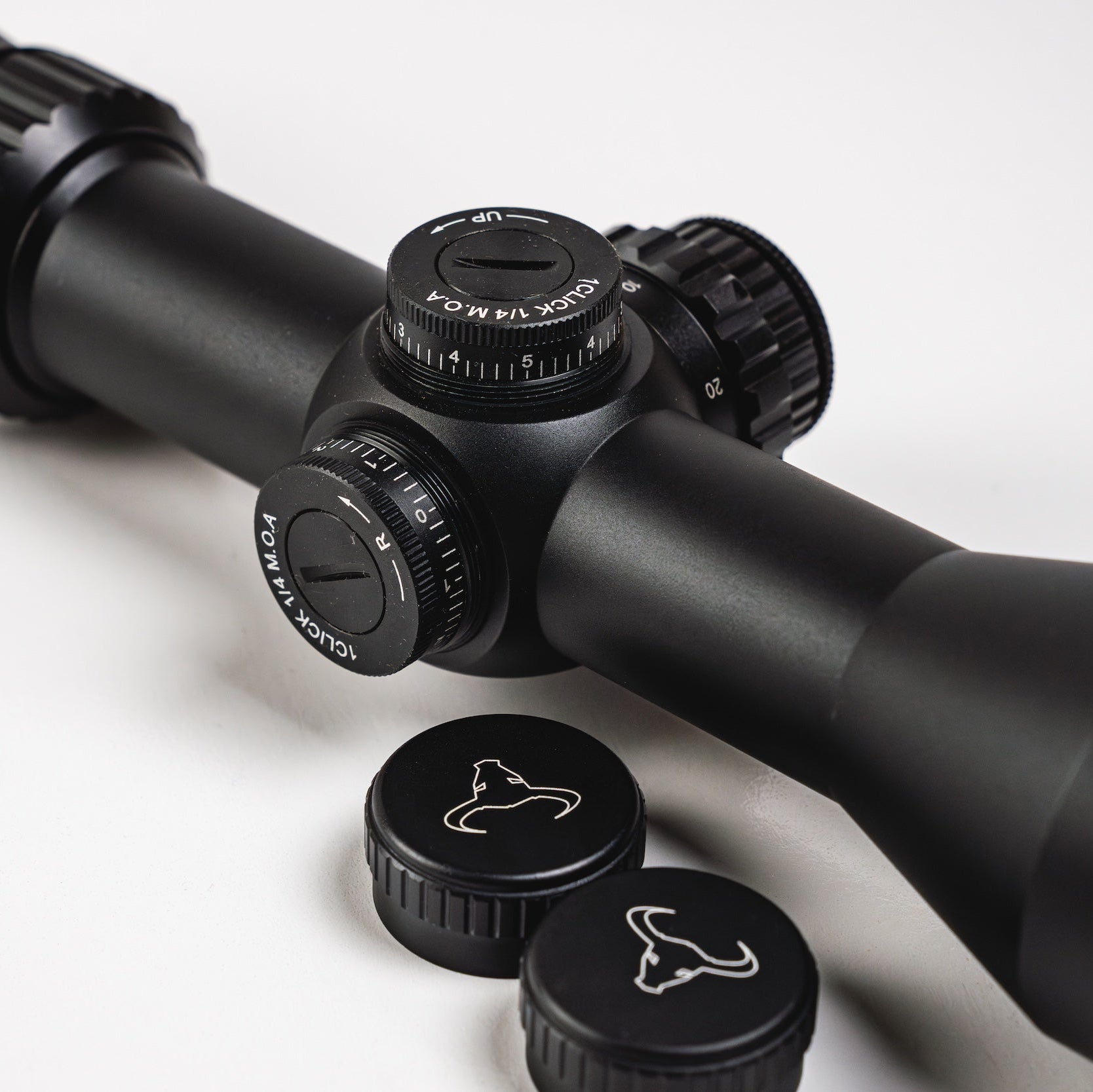

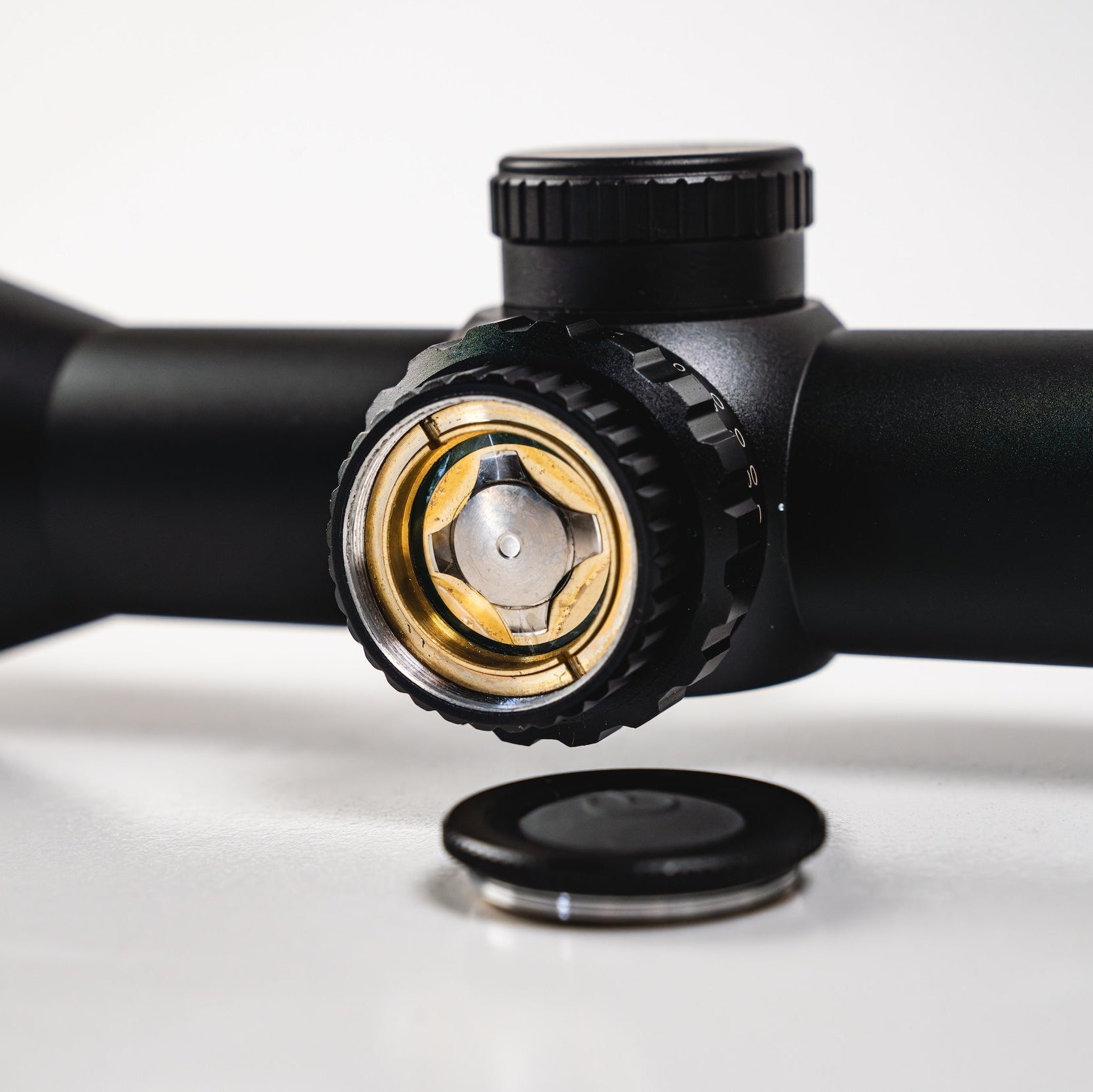

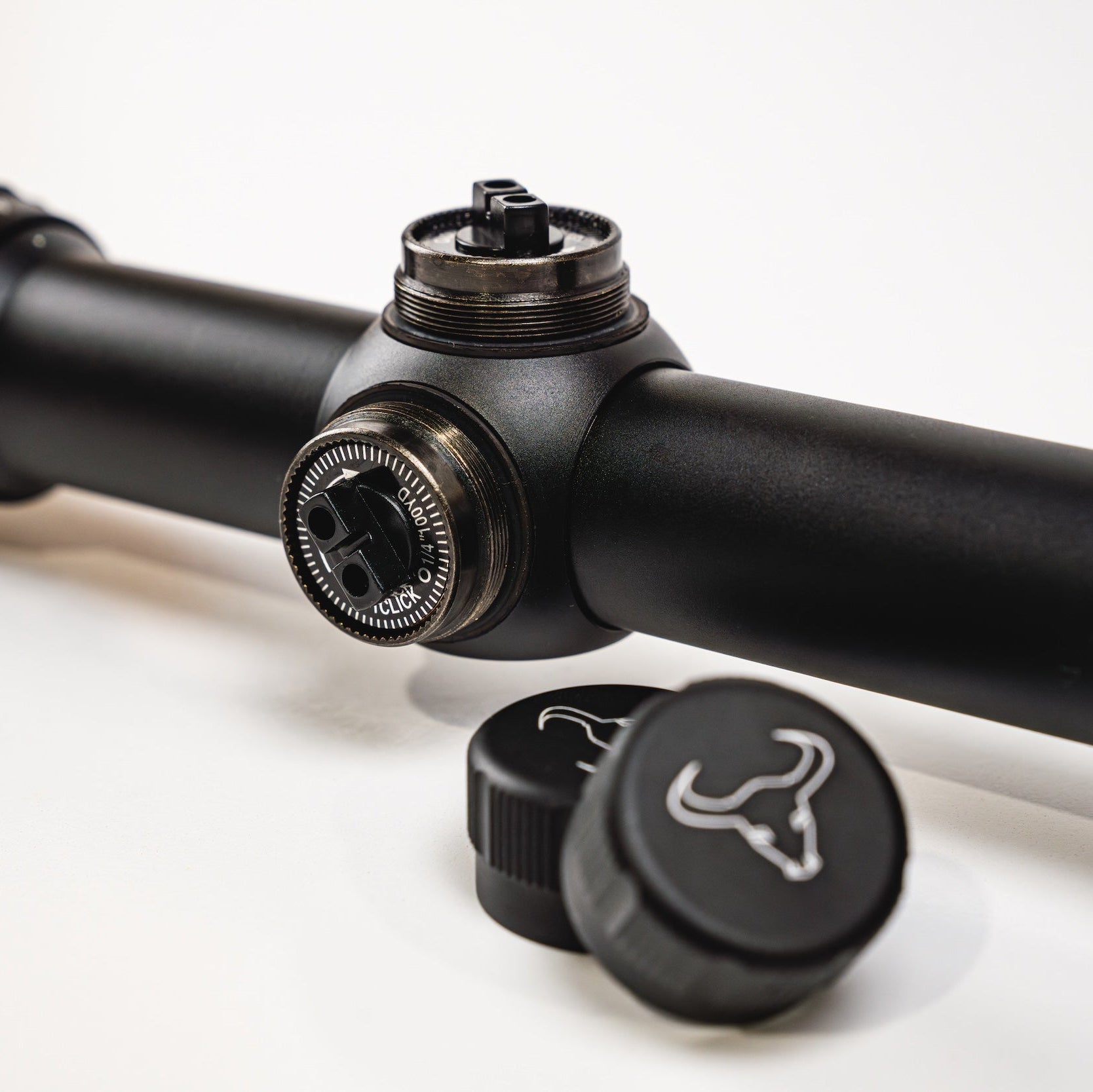

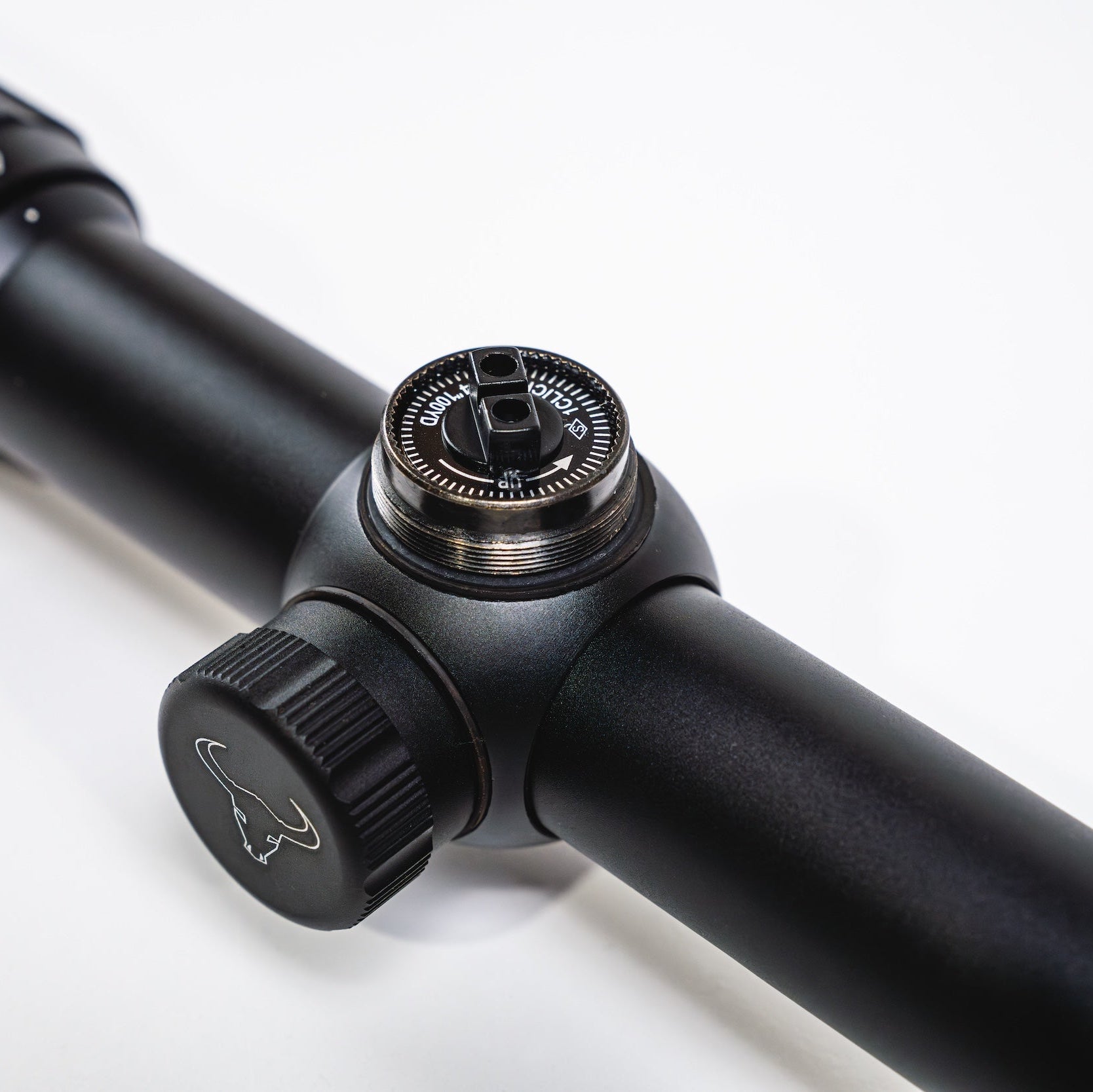

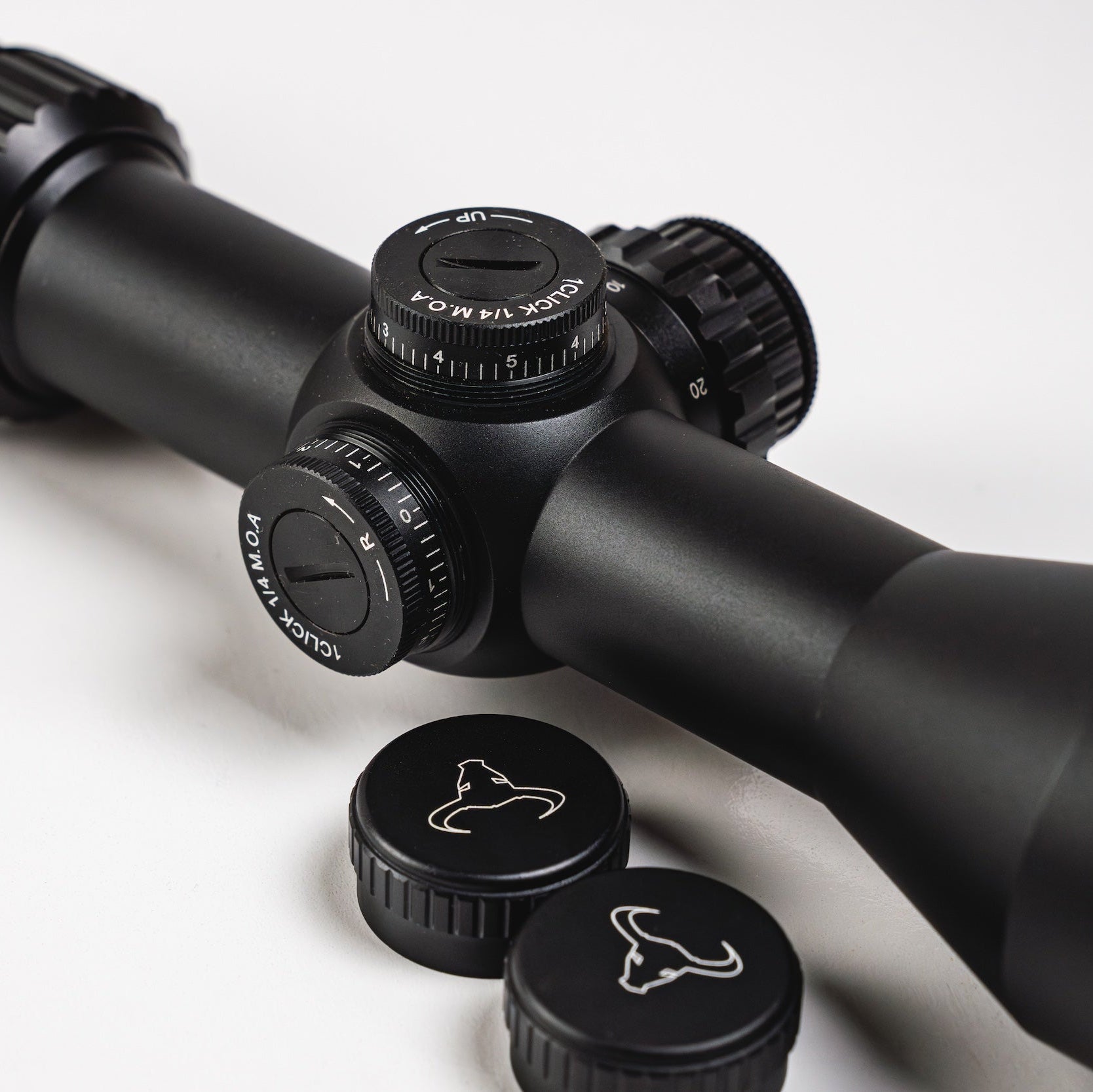

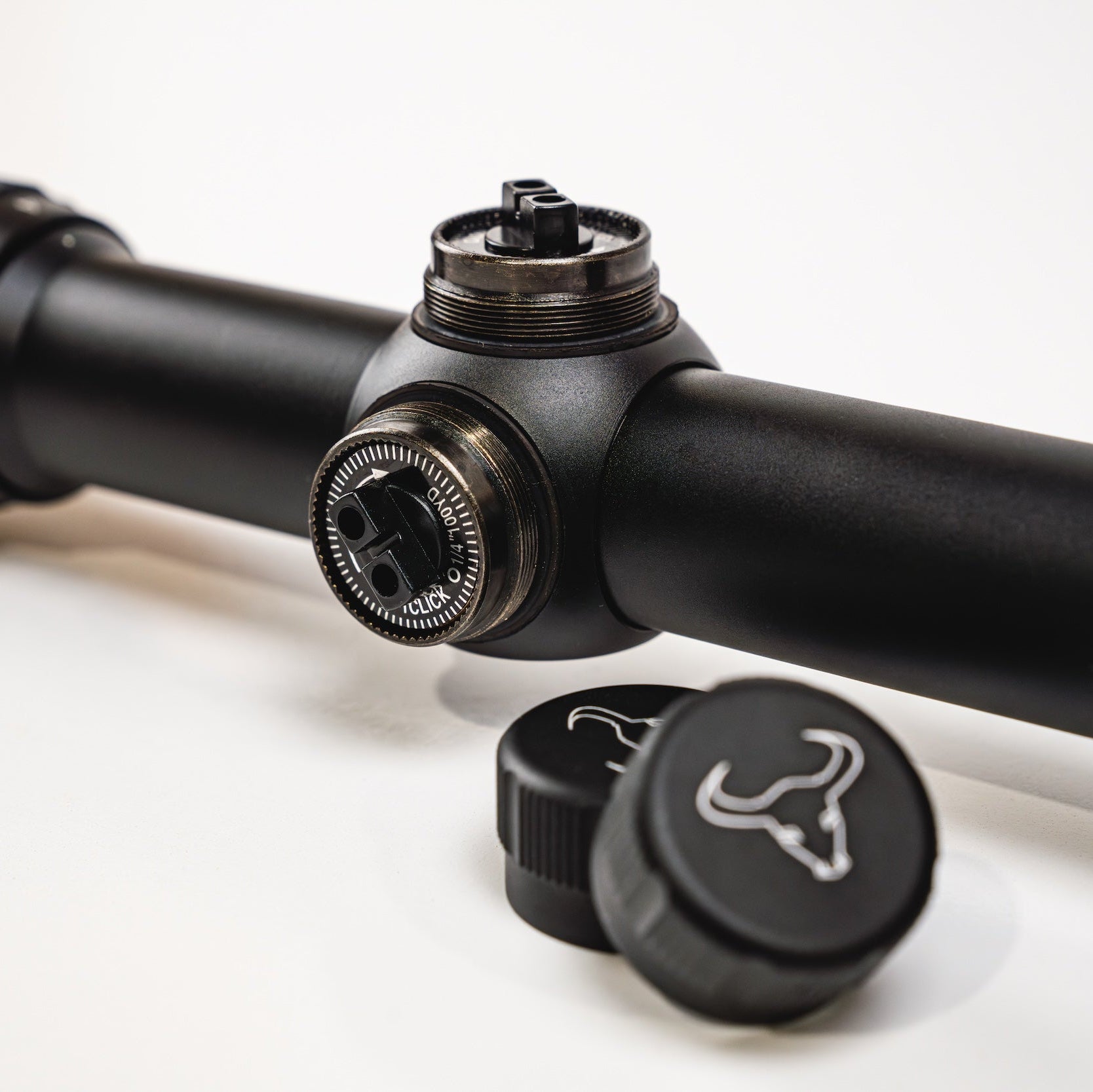

  Adjustment turrets

•
  Windage & elevation rotation

•
  Eyepiece frame

•
  Illumination control

•
  Bonded components


We check for:

•
  Smooth, consistent rotation

•
  No excessive tightness or looseness

•
  Positive, uniform click feel

•
  No jamming, hesitation or dead travel

•
  Accurate and consistent positioning

•
  Clearly defined illumination brightness levels

•
  Secure bonding with no tilt or movement

🎯 Optical & Precision Performance Testing

Each riflescope is tested against strict internal standards for:

•

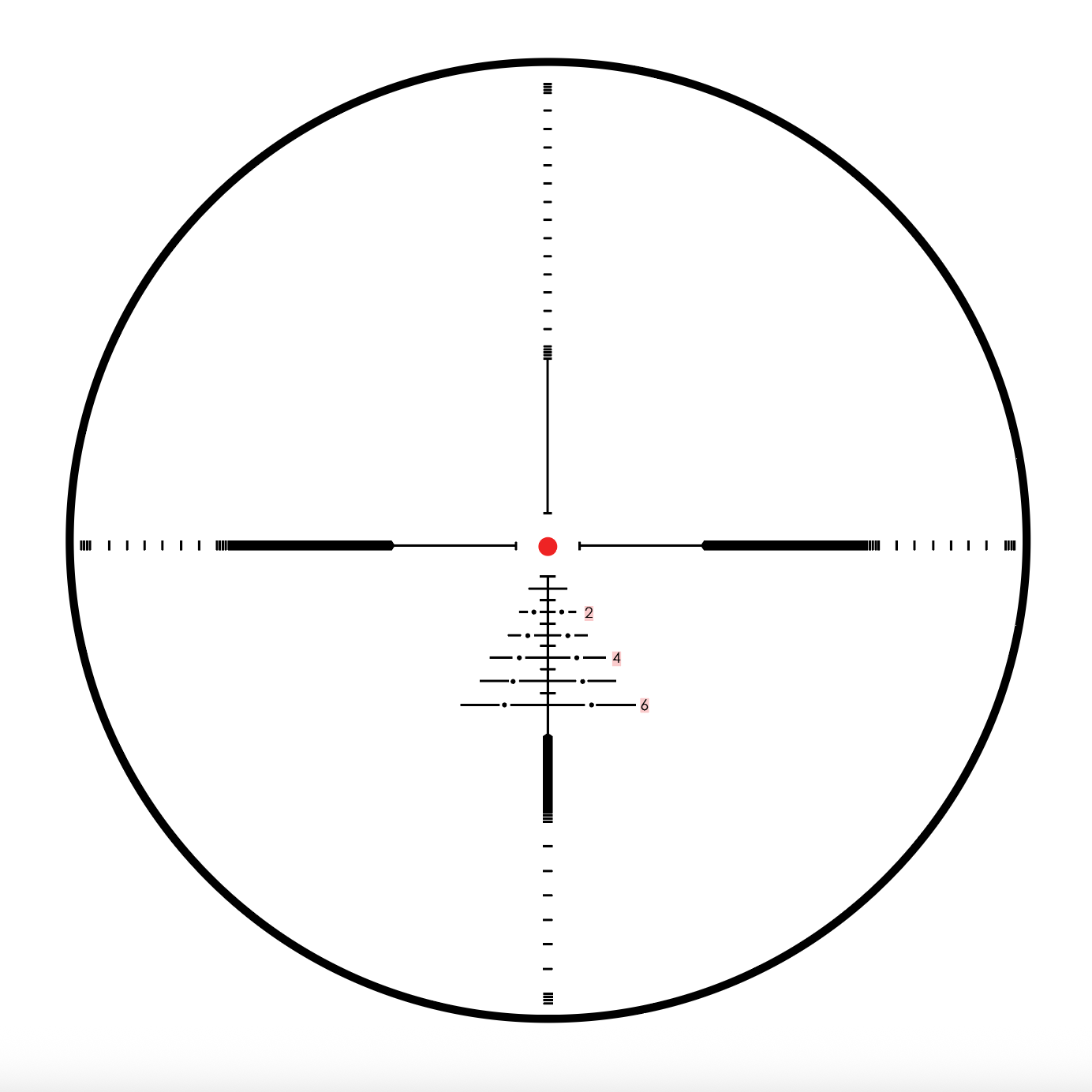

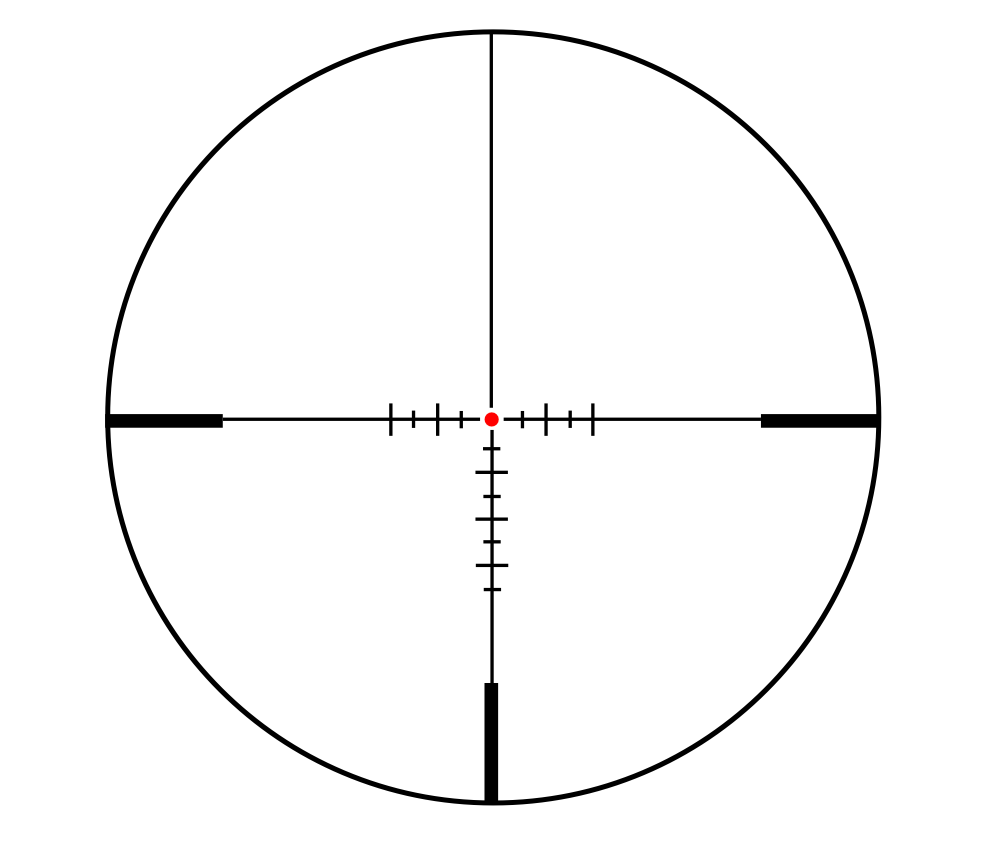

  Reticle alignment (no tilt)

•
  Tracking accuracy

•
  Click value precision

•
  Total adjustment range

•
  Field of view & field curvature

•
  Magnification accuracy

•
  Centre shift

•
  Parallax accuracy

•
  Runout

•
  Diopter function

•
  Resolution clarity

•
  Reticle dust & internal defects


Every component must meet our defined performance tolerances.

💥 Durability & Environmental Testing

To ensure reliability in real-world conditions, scopes are tested for:

Impact Resistance

Free-fall drop testing on a dedicated impact machine.

Waterproofing

Submerged at 52°C water temperature, 250mm depth for 3 minutes.

Fogproof Performance

Stored at –18°C for 30 minutes.

After testing, we confirm:

•
  No parallax drift

•
  No loosening of components

•
  No air bubbles or leaks

•
  No internal fogging

✅ Final Quality Control & Packaging

Every scope receives a final visual inspection to confirm:

•
  Exterior finish matches specification

•
  Reticle design matches approved standards

•
  No stains, glue marks or oil residue

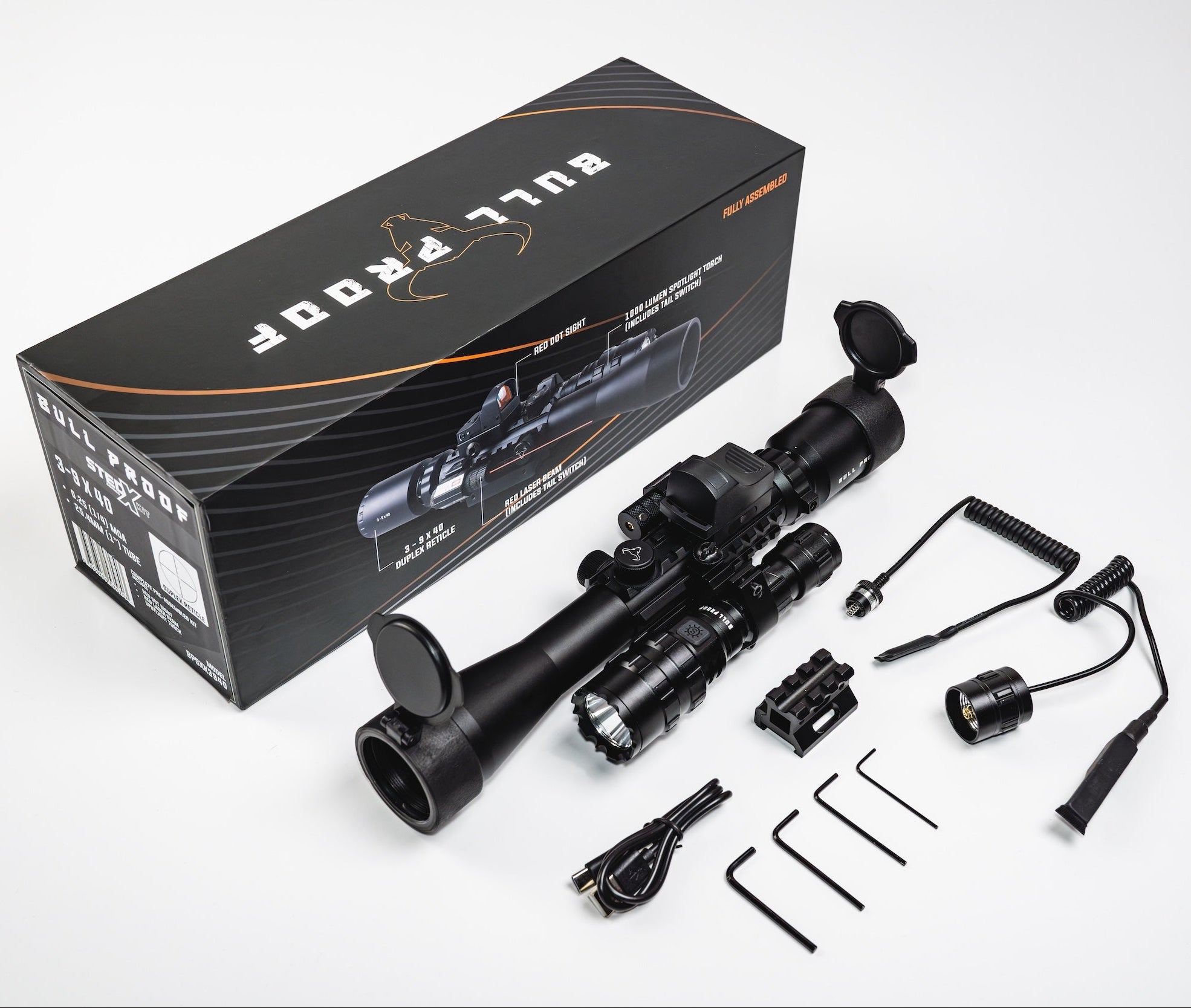

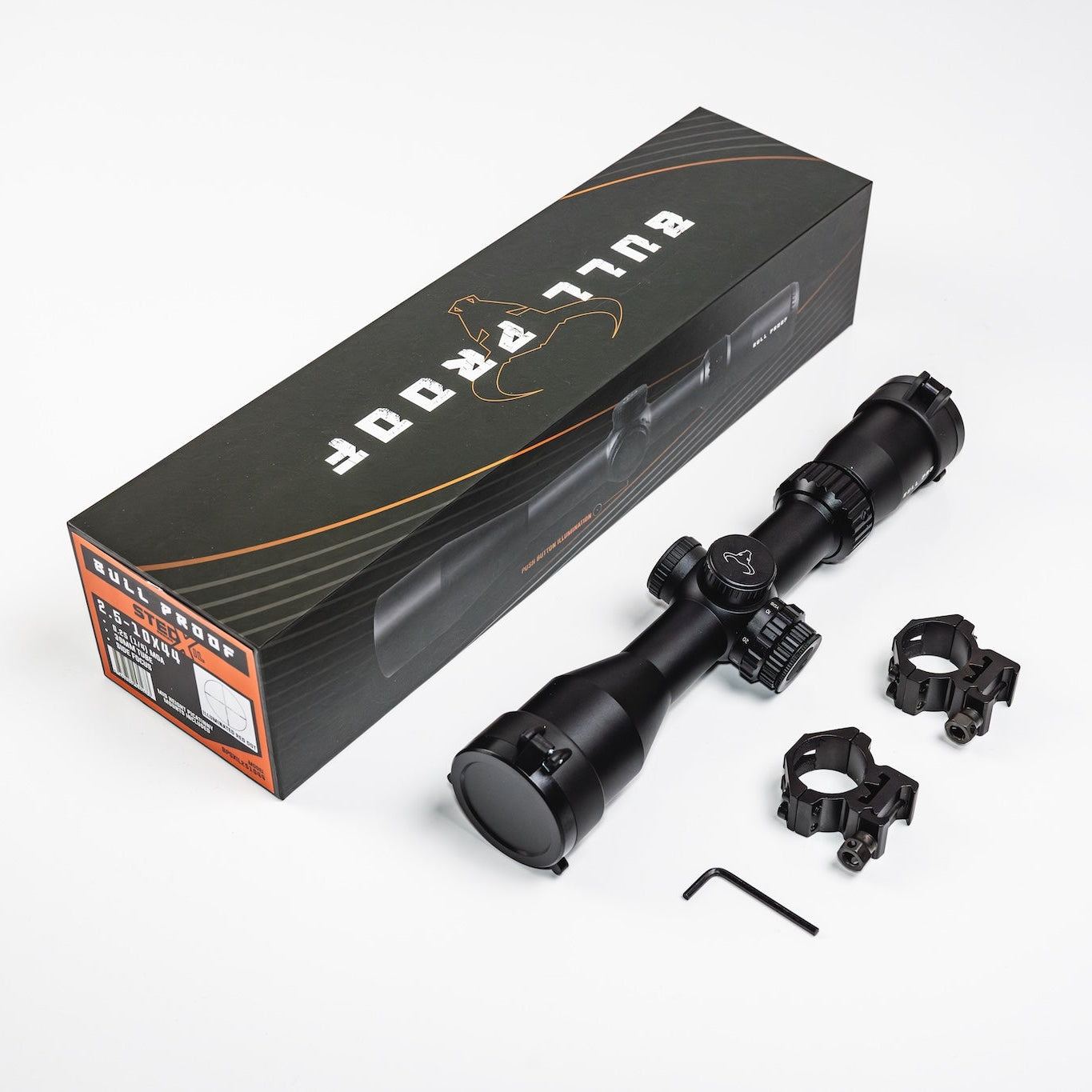

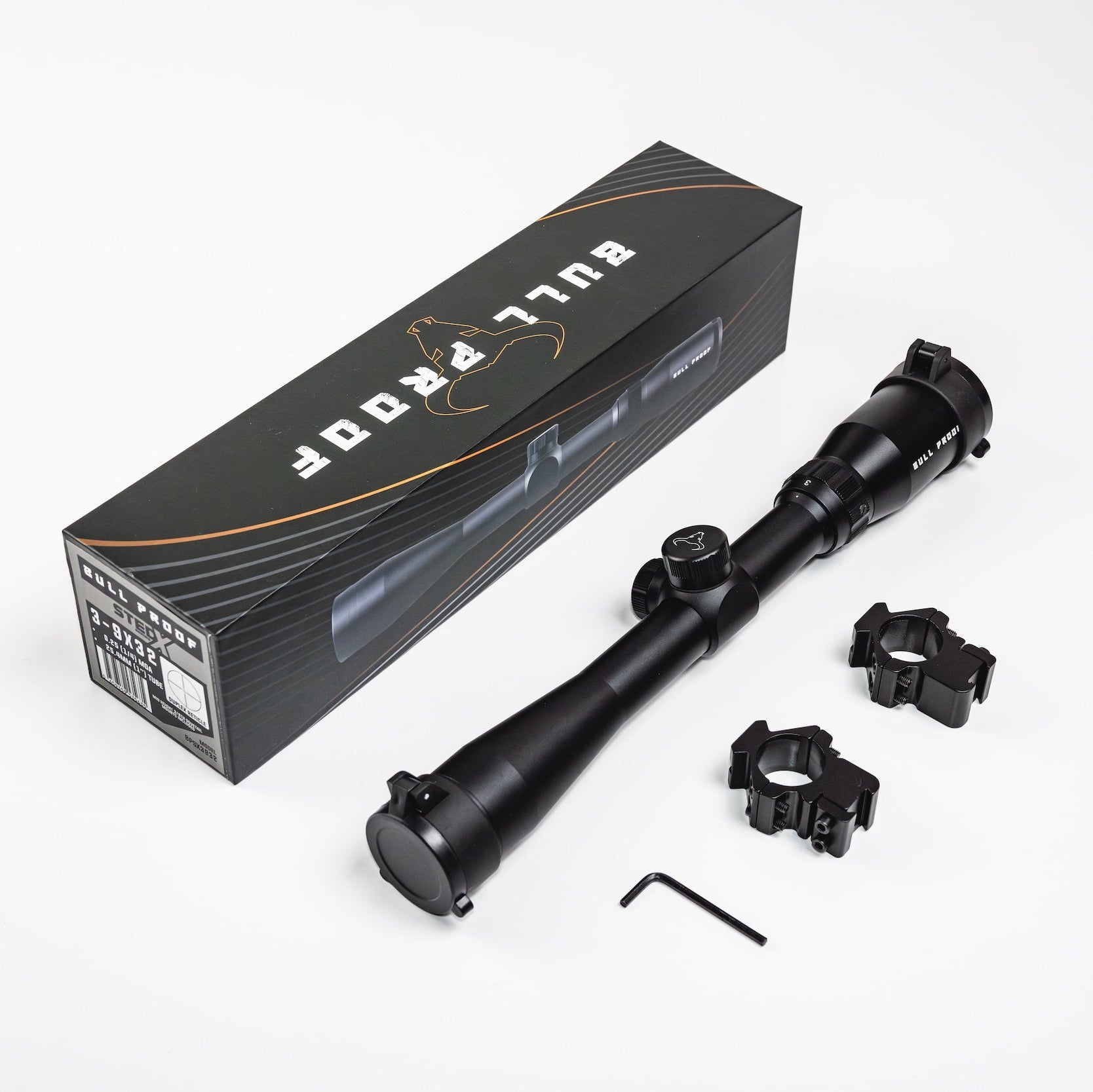

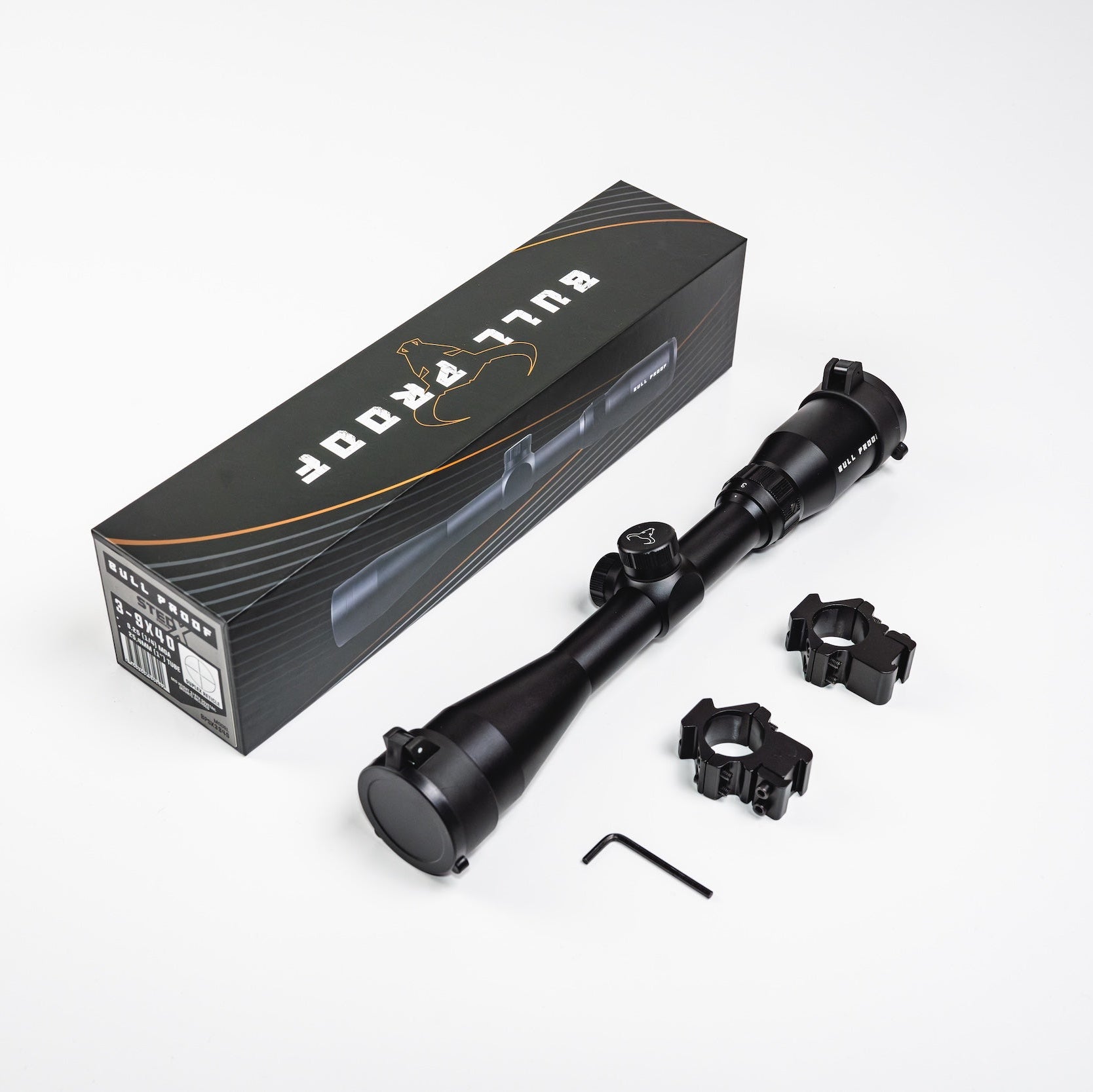

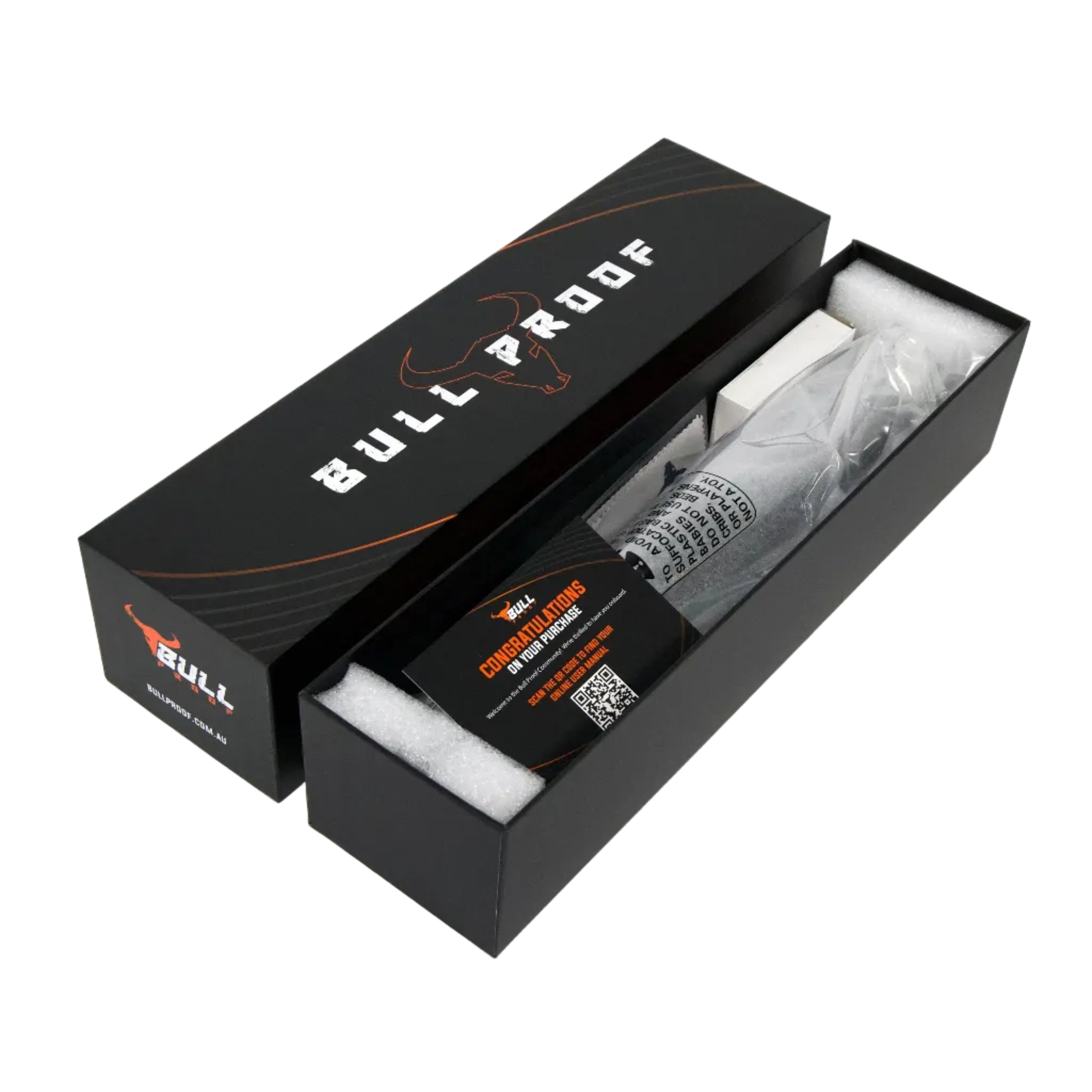

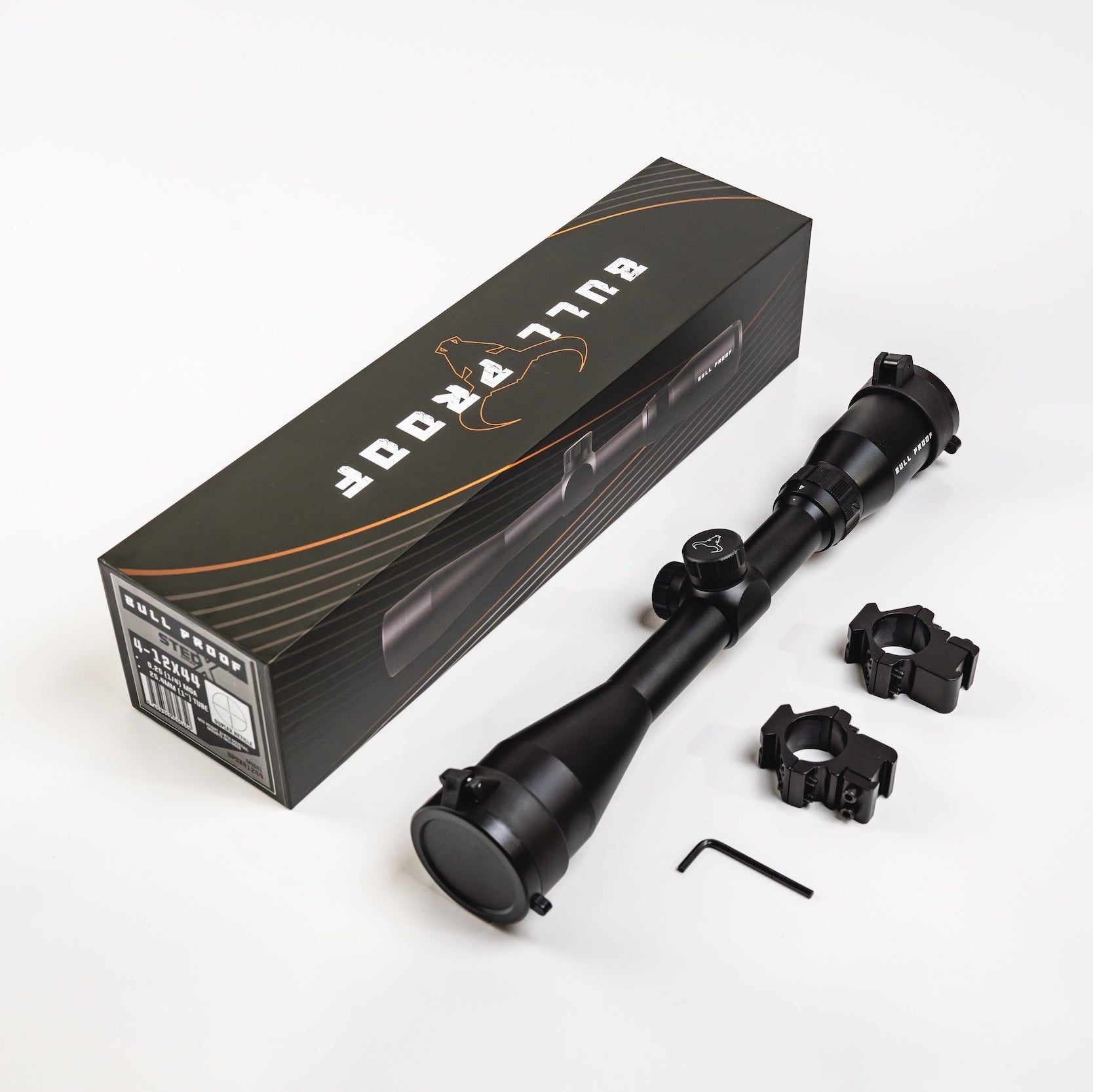

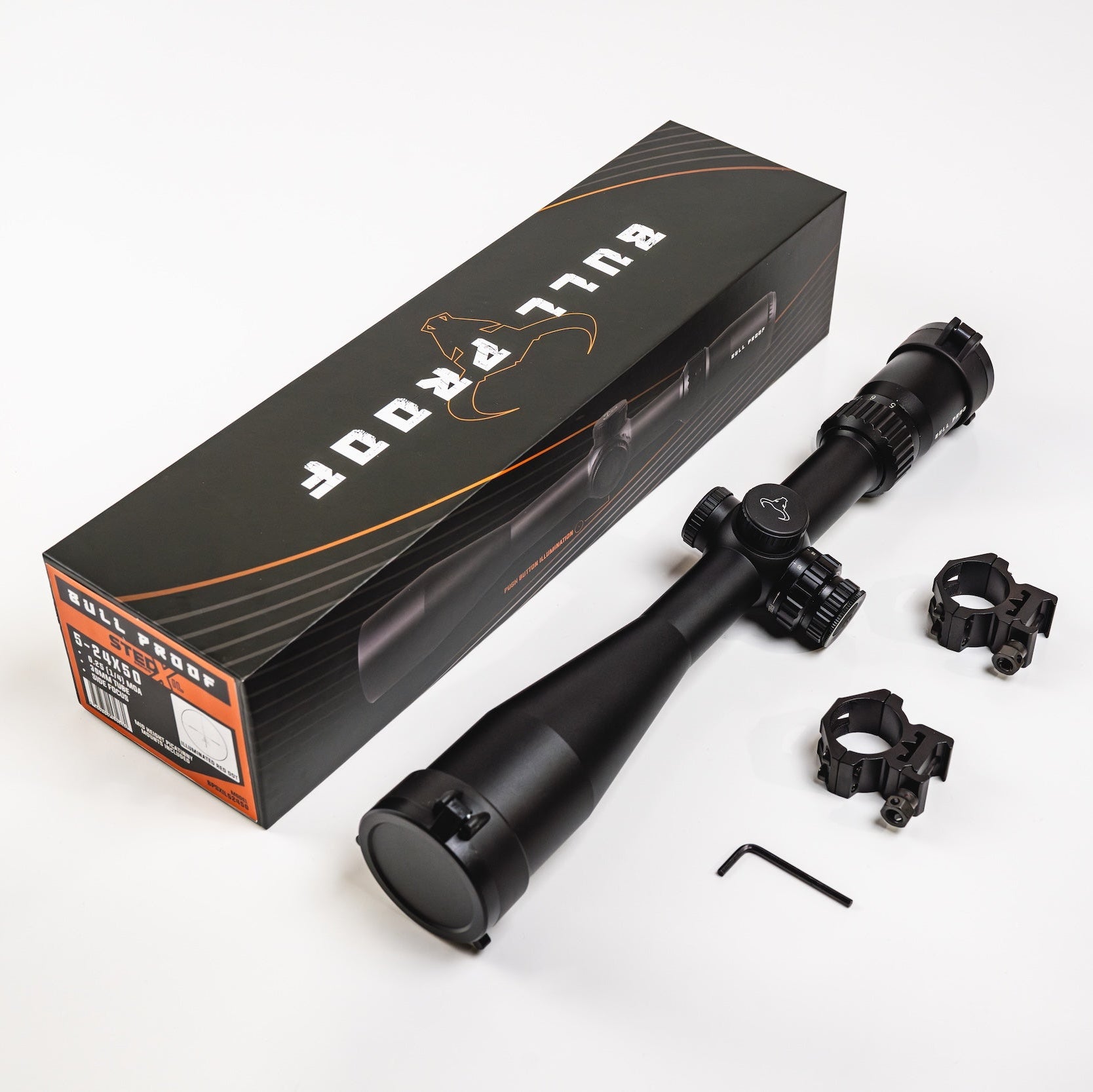

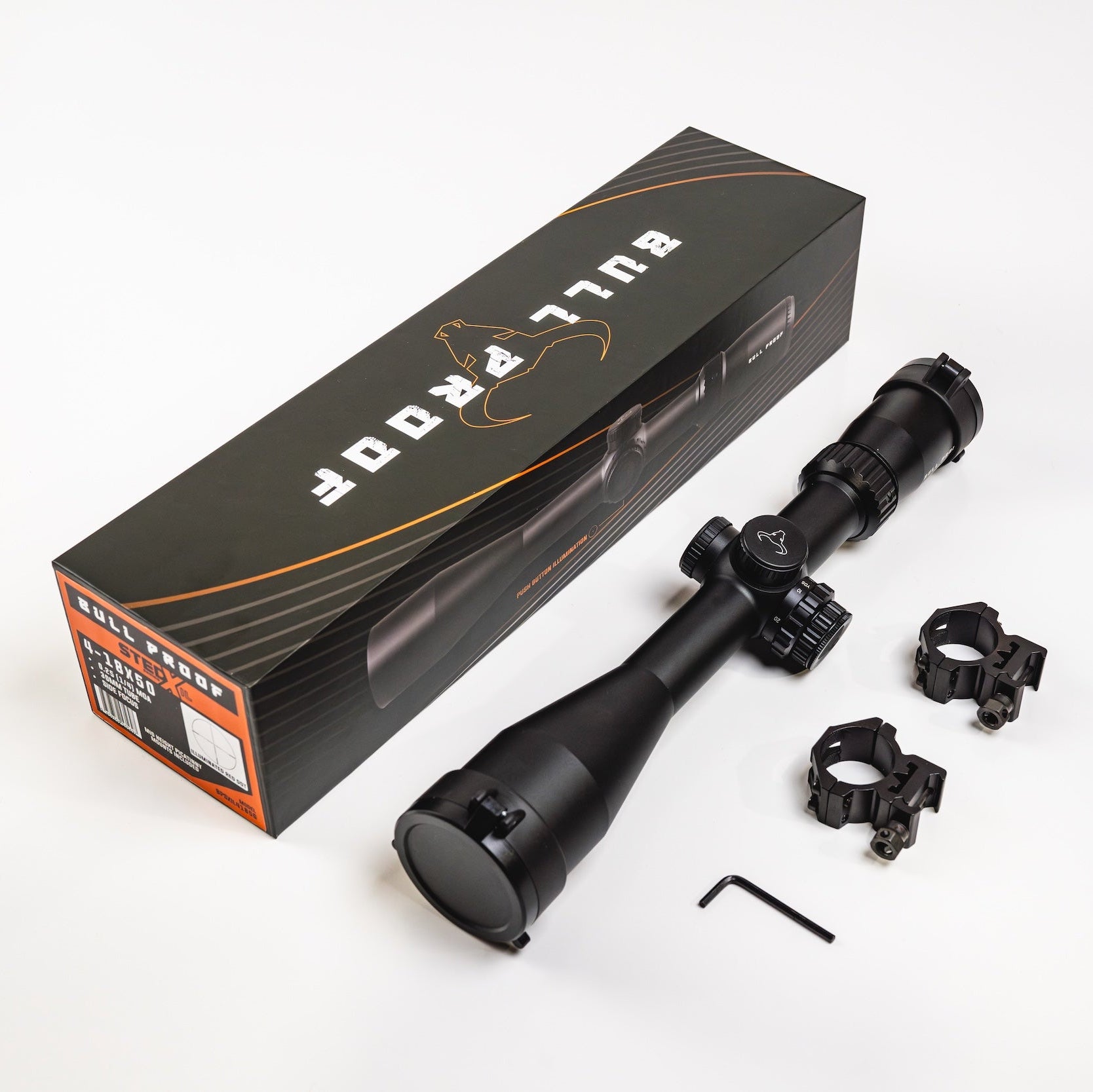

Packaging is checked to ensure it is clean, secure and presentation-ready.
